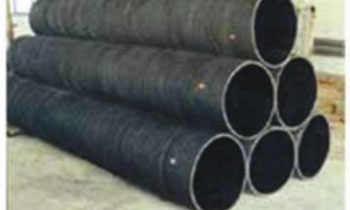

型號LT1223

吸排水膠管 堅固 耐壓





1.簾線輸水膠管

用途:

供采礦、工廠、農林、土木建筑工程常溫下輸送水及一般中性液體。

特點:

膠管管體輕便,具有良好的柔軟性和耐老化性能,膠管的爆破壓力不低于

工作壓力的三倍。

1.Cord Water Transprtation Rubber Hose

Applicability:Apply to transport water and some neutral liquid in mining,factories,farming,civil

engineering etc.

Character:The body is hard,light and convenient with excellent flexibility and anti aging.The burstre

pressure is at least three times of the working pressure.

2.吸水管

用途:

供工礦、土建及水利工程等吸引常溫水及一般中性液體。

特點:

膠管管體有優良的曲撓性,管體堅固,在承受真空度-80KPa(600mm汞柱)的條件下使用時膠管仍

有良好的性能。

2.Water Suction Rubber Hose

Applicability:Apply to suck water and some neutral liquid in mining,civil engineering and water

conservancy projrct etc.

Character:The body is good in flexibility and can perform well under -80KPa(600mm mercury) in a

vacuum.

3.排吸水膠管

用途:

供工礦、工廠、城建及水利工程等吸引或排送常溫水及一般中性液體。

特點:

膠管具有承受正壓或負壓的雙重性能,適于較復雜環境條件下使用。

3.Water Discharge and Suction Rubber Hose

Applicability:Apply to discharge and suck water and some neutral liquid in mining,factories urban

construction and water conservancy project etc.

Character:The hose is suitable for more complex conditions with double properties of bearing positive

and negative pressure.

4.高壓吸水膠管

用途:

適合基礎工程大揚程水泵排水用。

特點:

膠管承壓高,變形小,具有很高的抗拉強度,膠層抗撕裂,耐磨耗,耐老化,性能優良。膠管的爆破

壓力不低于工作壓力的三倍。

4.High Pressure Water Suction Hose

Applicability:Apply to discharge water for the long distant water pump in foundation engineering.

Character:The hose can bear high pressure with excellent properties of high tensile strength,anti aging

and wear proof.The burst pressure is at least three times of the working pressure.

詳細參數

1、簾線輸水膠管主要參數

內徑
in.mm
I.D
工作壓力
Mpa(psi)
W.P
基本長度
Basic Length
最大長度
Max Length
公稱尺寸
Size
公差
Tolerance
MpaKgf/cm2m公差 mm
Tolerance
m
13±0.80.7720±200200
16±0.80.7720±200200
19±0.80.7720±200200
22±0.80.7720±200200
25±0.80.7720±200200
32±1.20.7720±200200
38±1.20.7720±200200
45±1.20.7720±200200
51±1.20.7720±200200
64±1.50.7720±200200
76±1.50.7720±200200
89±1.50.7720±200200
102±2.00.7720±200200
127±2.00.7710±12010
152±2.00.7710±12010

2、吸水膠管主要參數

內徑
in.mm
I.D
基本長度
Basic Length
公稱尺寸
Size
公差
Tolerance
m公差 mm
Tolerance
25±0.820±120
32±1.220±120
38±1.220±120
45±1.220±120
51±1.220±120
64±1.520±120
76±1.520±120
89±1.520±120
102±1.520±120
127±2.010±120
152±2.010±120
203±2.510±120
254±2.510±120
305±3.010±120
357±3.010±120

3、排吸水膠管主要參數

內徑
in.mm
I.D
工作壓力
Mpa(psi)
W.P
基本長度
Basic Length
公稱尺寸
Size
公差
Tolerance
MpaKgf/cm2m公差 mm
Tolerance
51±1.20.6620±120
64±1.50.6620±120
76±1.50.6620±120
89±1.50.6620±120
102±2.00.6620±120
127±2.00.6610±120
152±2.00.6610±120
203±2.50.6610±120
254±2.50.6610±120

4、高壓吸水膠管主要參數

內徑
in.mm
I.D
工作壓力
Mpa(psi)
W.P
基本長度
Basic Length
公稱尺寸
Size
公差
Tolerance
MpaKgf/cm2m公差 mm
Tolerance
76±1.50.9920±120
89±1.50.9920±120
102±2.00.9920±120
127±2.00.9910±120
152±2.00.9910±120
203±2.50.9910±120
